3 inch 10-15m / min Production Capacity Door Bottom Rail Cold Roll Forming Machine With CE Certificated
Door Rail Technical Parameter
| |
Items |
Specifications |
Material of coil |
Material Thickness |
0.3-1.2mm galvanized |
Un Coiler |
3 tons manual |
Forming system |
Rolling Speed |
12 m/min |
Roller Stations |
14 stations |
Roller Material |
45# Steel with quenching 50mm shaft |
Maim Motor Power |
7.5 kw |
Hydraulic cutting Power |
4 kw |
Cutting
system |
Material Of Cutting |
CR12 with quench treatment |
Hardness |
HRC58-62 |
Tolerance |
+-1.5mm |
Electrical control system |
Electric Source |
380V, 50HZ,3 phase
Also can satisfy Customer's require |
Control System |
PLC (Panasonic) as list in the note |
| |
Weight |
About 3 tons |
| |
Way Of Drive |
1 inch single chain |
| |
Size of machine |
Length 5500mm* Width 600mm* Height 800mm |
Door Rail Main Components
| S.N | Equipment name
| Quantity |
| 1. | 3T passive un-coiler
| 1 set |
| 2. | Servo feeding and leveling device
| 1 set |
| 3. | Main roll forming machine 12 stations drived by chain | 1 set |
| 4. | Hydraulic cutting
| 1 set |
| 5. | Control system (including control box)
| 1 set |
| 6. | Hydraulic punching | 1 set |
| 7. |
Out tables | 2 unit |
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Punching---Roll forming---Cutting---Run out tables
Profiles of Door Rail

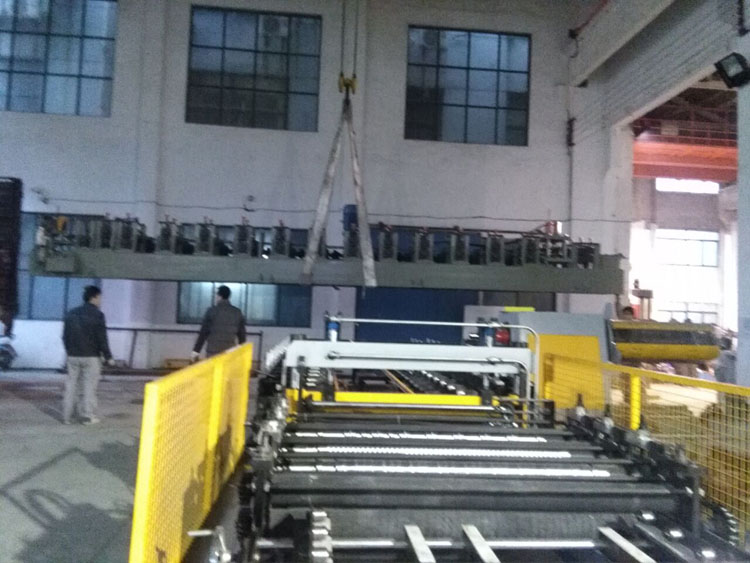

Loading Pics
Packaging Details: the package of door frame roll former machinery is standard export package or as required
Delivery Detail: 45 days after receiving deposit
Payment terms
Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer
Our Service
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations.
