Galvanized Steel Drywall C Stud And Track Roll Formed Machine Line Speed 10-12m/min Chain Drive

Name: Galvanized Steel Drywall C Stud And Track Roll Formed Machine Line Speed 1012mmin Chain Drive
Brand: sussman
Price: 1 USD

China Galvanized Steel Drywall C Stud And Track Roll Formed Machine Line Speed 10-12m/min Chain Drive wholesale

Brand Name : sussman

Model Number : SM-DW

Certification : CE ISO 9001

Place of Origin : China

MOQ : 1set

Price : negotiable

Payment Terms : L/C, T/T, D/P, Western Union, MoneyGram

Supply Ability : 10 set per month

Delivery Time : 45-55 days

Packaging Details : steel +film

Material : Steel

material thickness : 0.4-1.0mm

Roller material : 45# Steel

power supply : 380V, 50Hz, 3Phase

Forming speed : 10-12m/min

Machine weight : about 3.2 tons

Dimension : 6000*1300*1500mm

Contact Now

Galvanized Steel Drywall C Stud And Track Roll Formed Machine Line Speed 10-12m/min Chain Drive

Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	0.3-1.2 mm galvanized steel
De-coiler	Weight	3 ton manual

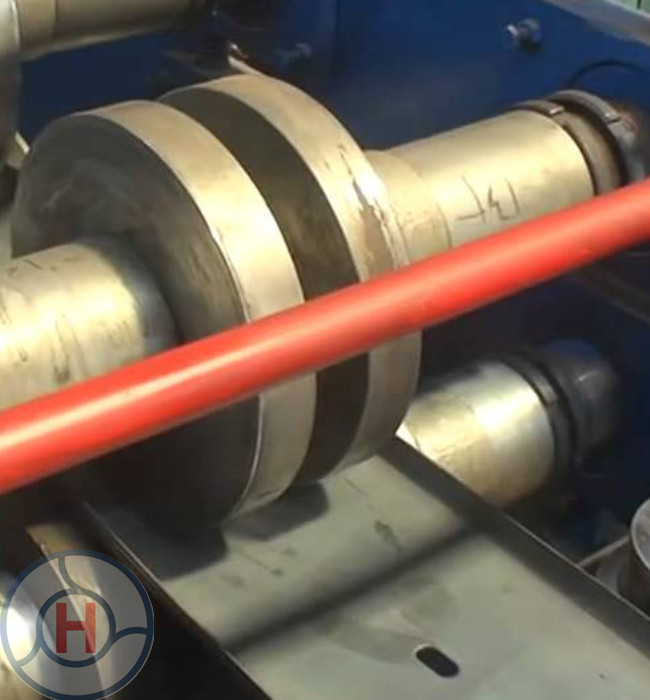

Forming system	Roller Stations	About 13 stations forming, 1 set of rolls for embossing
	Roller Material	Cr40 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ or 220V,60HZ
Electrical control system	Control System	PLC Japanese Panasonic and Yaskawa Brand
	Weight	About 3 tons
	Way Of Drive	1 inch single chain
	Size of machine	500013001500mm

Drywall Production Line Main Components

Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set

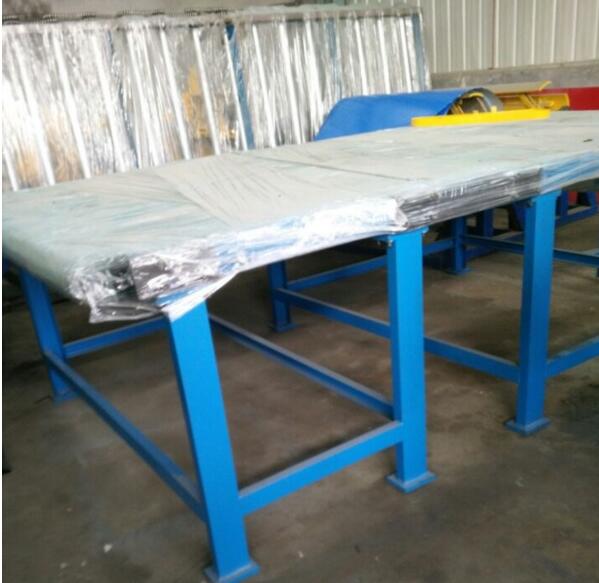

Run out tables		2 units

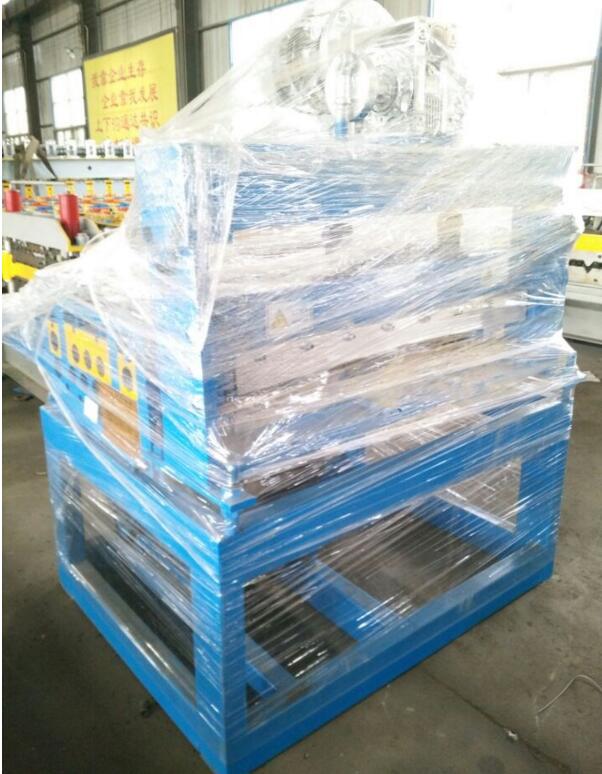

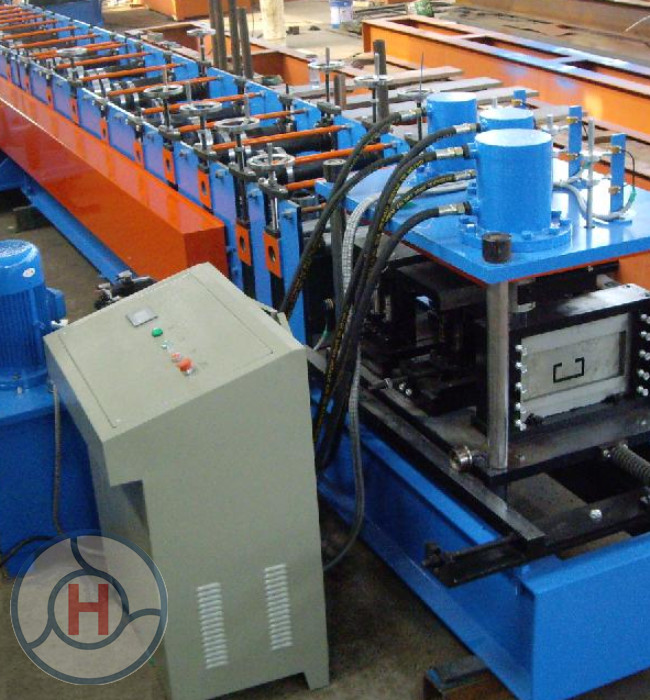

Photo Gallery

Galvanized Steel Drywall C Stud And Track Roll Formed Machine Line Speed 10-12m/min Chain Drive

Loading pictures

Galvanized Steel Drywall C Stud And Track Roll Formed Machine Line Speed 10-12m/min Chain Drive

Company information

Sussman Machinery is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron andsteel production enterprises' growing demands.

Suhang machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.

Amber
Marketing Manager

T:+86-510-85135580 F:+86-510-85130480

Mobile&Whatsapp:+86-18112481091

Skype:cqamber
