Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission

Name: Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission
Brand: Sussman
Price: 1 USD

China Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission wholesale

Brand Name : Sussman

Model Number : SM-SD

Certification : CE ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets per month

Delivery Time : 60days

Packaging Details : film+ steel

Payment Terms : D/P, MoneyGram, L/C, T/T

Name : Insulated Roller Shutter Garage Door Roll Forming Machine

Material : Aluminum Coil and Colorful Galavanize Steel

material thickness : 0.3-0.6mm

Forming stations : 46 stations

Roller material : Gcr15, Quench HRC58-62 Plated Chrome

Dirve system : Chain drive or gearbox

power supply : 380V, 50Hz, 3Phase

Forming speed : 8-15m/min

Machine weight : about 7 tons

Machine Size : 24mx0.6mx0.9m

Contact Now

Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission

Technical Parameter

Material type aluminum coil plate and colorful galvanize steel
Material thickness: 0.3- 0.6mm. coil width 140mm
Material yield strength: ≤G200Mpa
Main specification
a. Decoiler
Manual un-coiling Capacity: ≤3 T
b. Main datas of forming machine
Forming stands: about 46 stands
Roller material GCr15: model steel, HRC50-54
Axial diameter: Φ40mm
Main axial material: No 45 steel HRB260-280
Driving part is gear box transmission
Frequency conversion decelerating Delta
PLC control: fix length control ±1mm (Delta)
Main components: CHINT, DELIXI
The precision of roller: less than ±0.5mm
Main roll forming machine motor: 380V, 50HZ, 11kw (or according to your requirements)
Machine basement material: H beam
Foaming machine: 1 set (China top brand)
Pneumatic flying punching machine 1 set
Material of cut: Cr12Mov Quench: HRC58-62
Automatic punching device 1 set
Finished products table: 1 set
Working speed: 8-15m/min
dimensions of main forming machine
24000mm× 600mm × 900mm
Machine weight: about 7T

Main Components

1	Decoiler	1 set
2	Guide Feeding device	1 set
3	main forming machine	1 set
4	Foaming machine (just foamed one owned)	1 set
5	Straighten device	1 set
6	flying saw cutting machine	1 set
7	finished products table	1 set
8	PLC control system	1 set
9	Spare Parts And Tools	1 set

Working Flow of Roll Forming Machine

Decoiler—feedingdevice—mainforming—PUinjection---straightendevice—punching—FlysawCutting ---run out table
Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission

Profile of product

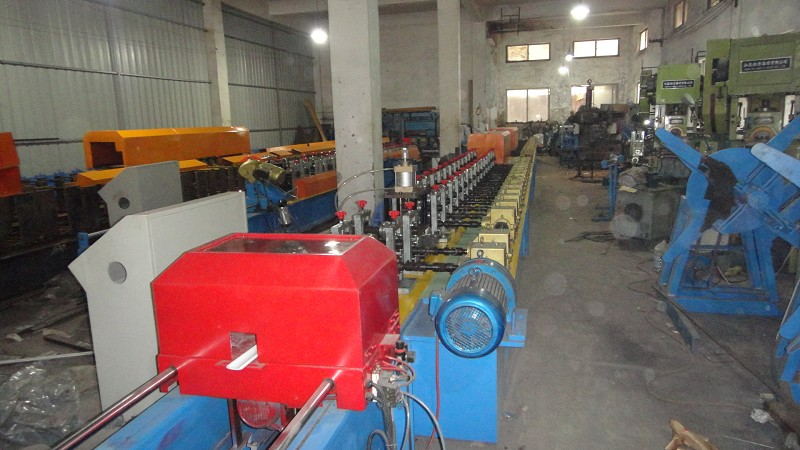

Photo Gallery

Our Customer Visiting

Customize Insulated PU Roller Shutter Door Roll Forming Machine With Chain Transmission

Our advantages

1: Factory direct supply price.

2: We have exported for more than 10 years.

3: Our customer are from about 34 countries.

4: We have the professional research team. We can make the machine according to your requirement.

5: High-end and high-grade design

6: Free technical support and Freeaccessoies supply.
