High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters

Name: High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters
Brand: SUSSMAN
Price: 1 USD

China High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters wholesale

Brand Name : SUSSMAN

Model Number : SS-OP

Certification : SGS.ISO,CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 70 days

Packaging Details : standard packing film and steel

Name : 60mm Octagon Shaft Roll Forming Machine

Material : 45# Steel

material thickness : 0.4-1.2mm

Forming stations : 20 stations

Roller material : GCr15 Steel

Dirve system : Chain drive

power supply : 380V, 50Hz, 3Phase

Forming speed : 10-12m/min

Machine weight : about 6 tons

Contact Now

High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe

Machine Technical Data

Machine specification: forming thickness)0.4-1.2mm stainless steel strength≤G250Mpa
Forming speed: 10-12M/min (EXCLUDING CUTTING STOP TIME)
Forming roller: about 20stations
Main motor power: 7.5KW
Roller material: 45# forged steel, surface coated with chrome
Main shaft material: 45# steel
Main axis dia.: 70mm
Hydraulic cutting pressure: 10-12Mpa

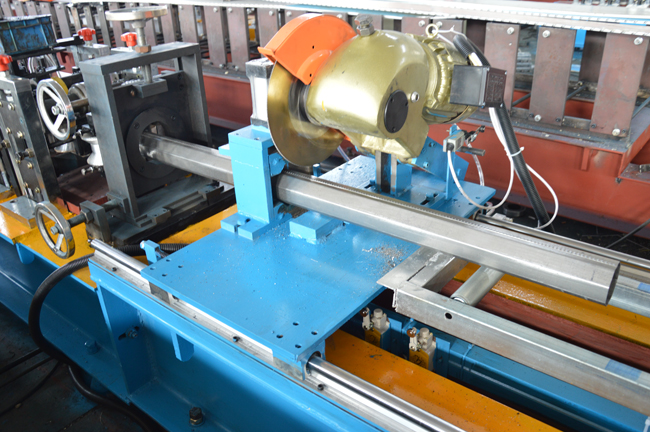

Cutting method: Electric powered saw cutting, cutting after roll forming.
Cutting blade material: Cr12 quenching treatment
Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
Wig welding device
water cooling system

Production Line Machine List

Serial No.	Commodity & Description	Quantity
1	3T manual uncoiler	1 set
2	feeding guiding	1 set
3	Main roll forming machine	1 set
4	Output table	1 set
5	Main drive gear box	1 set
6	Fly saw cutting	1 set
7	Controlling system (including cabinet)	1 set
8	Water cooling system	1 set
9	Cassette	2 sets

Standard Profile :

High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters

Working Flow of Octagon Pipe Roll Forming Machine

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

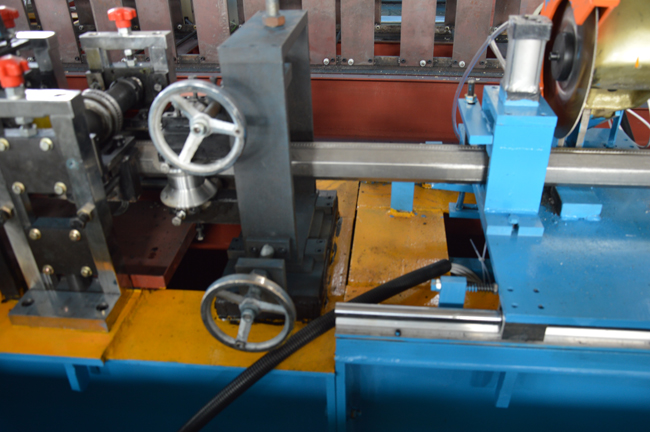

Photo Gallery

High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters

Application

High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters

Product Tags:

cold roll forming machine

sheet metal roll former

High Speed Roller Shutter Door Roll Forming Machine 60mm Steel Octagon Shaft Pipe for Shutters Images
