Durable Galvanized Steel Cold Roll Forming Machine Single Chain Transmission
Door Rail Technical Parameter
1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 8-10m/min
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: Cr40 steel, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw
12. Hydraulic Power: 4Kw
Door Rail Main Components
| S.N | Equipment name
| Quantity |
| 1. | 3T passive un-coiler
| 1 set |
| 2. | Feeding and leveling device
| 1 set |
| 5. | Main roll forming machine 12 stations drived by chain | 1 set |
| 6. | Hydraulic cutting
| 1 set |
| 7. | Control system (including control box)
| 1 set |
| 8. | Out tables
| 2 sets |
| 9. | Water cooling system
| 1 set |
Advantage for Door Rail
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Door Rail

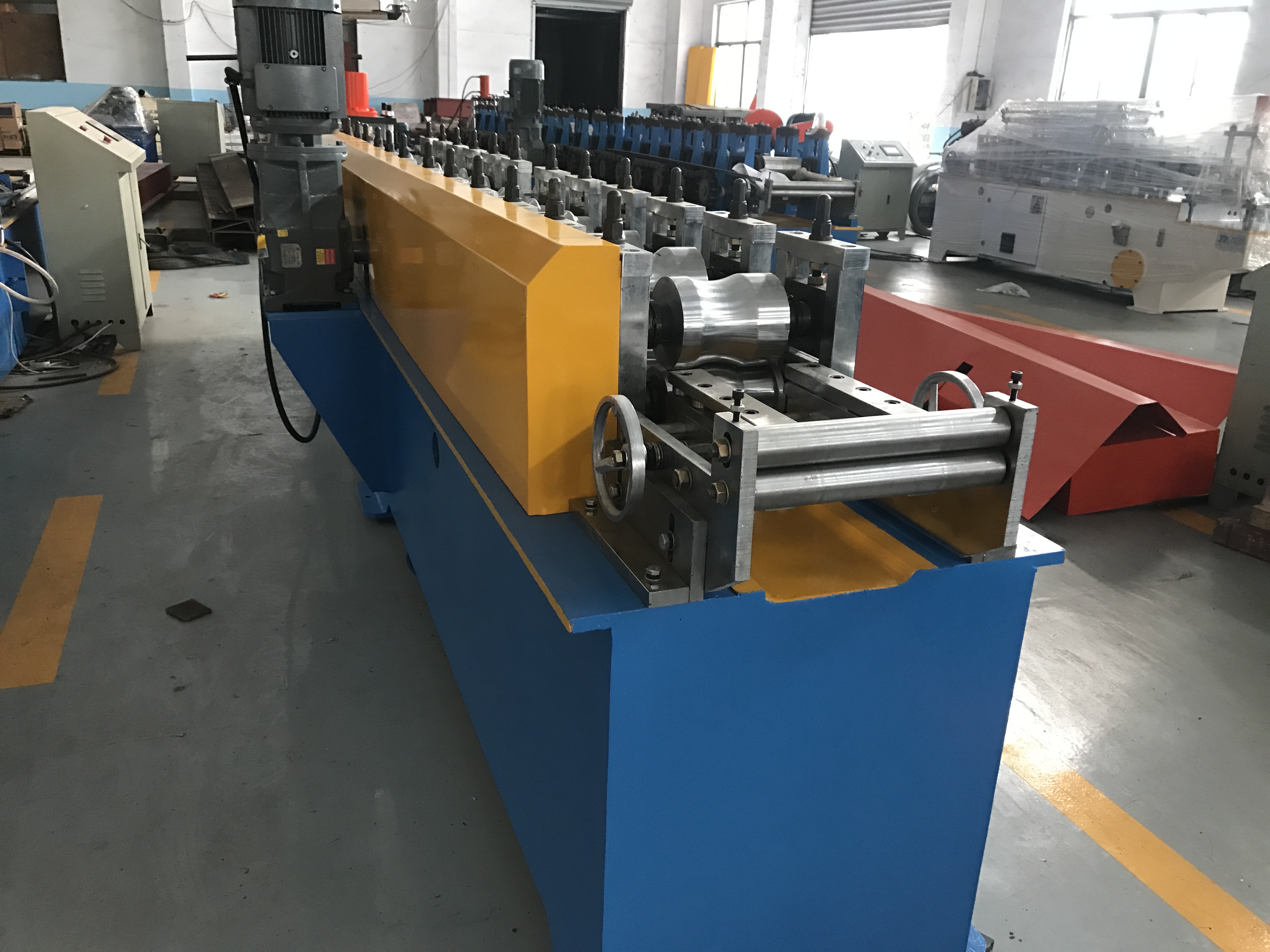

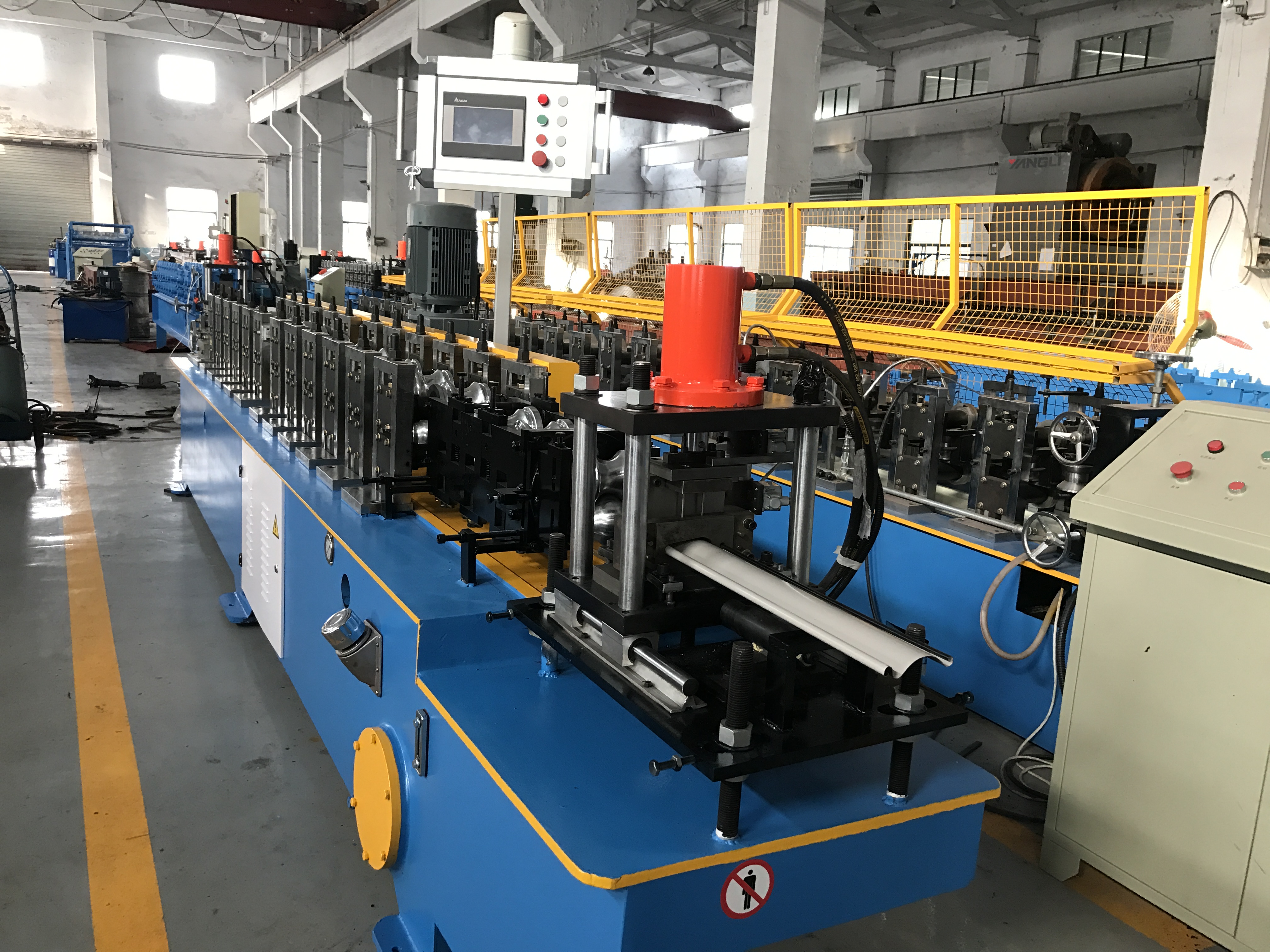

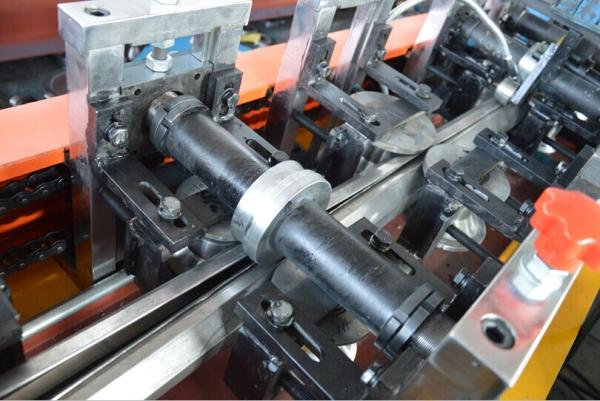

Machine pictures
Loading Pics
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4)Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
