Ce Certificate Automatic Metal Roller Shutter Door Forming Machine With 3 tons Manual Decoiler
Technical parameter
| No. | Main parameter |
| 1 | Suitable to process | Galvanized/Aluminum/Color steel sheet |
| 2 | Width of plate | 1250mm |
| 3 | Thickness of plate | 0.3-1.0mm |
| 4 | Rollers | High grade 45# steel, with hard chrome plating |
| 5 | Forming steps | 16 |
| 6 | Sprocket chain | 1.5 inch |
| 7 | Pump station power | 4kw |
| 8 | Shaft | 75mm, high grade 45# steel, heat treatment |
| 9 | Weight | About 5.0 tons |
| 10 | Productivity | 8-15m/min |
| 11 | Cutting head | Cr12 mould steel with quenched treatment |
| 12 | Control system | Japan brand PLC control |
| 13 | Voltage | 380V 3Phase 60Hz |
| 14 | Motor power | 5.5kw |
| 15 | Dimension | About 6.8m*1.5m*1.5m |
| 16 | Hydraulic pressure | 10-12mpa |
| 17 | Index error of length | ±1mm |
Applications
Shutter door slat, Rolling shutter door, shutter door, roller shutter door etc.
Rolling Shutter Working Flow
Decoiler-----feeding guide----- roll forming-----Hydraulic cutting-----finished product

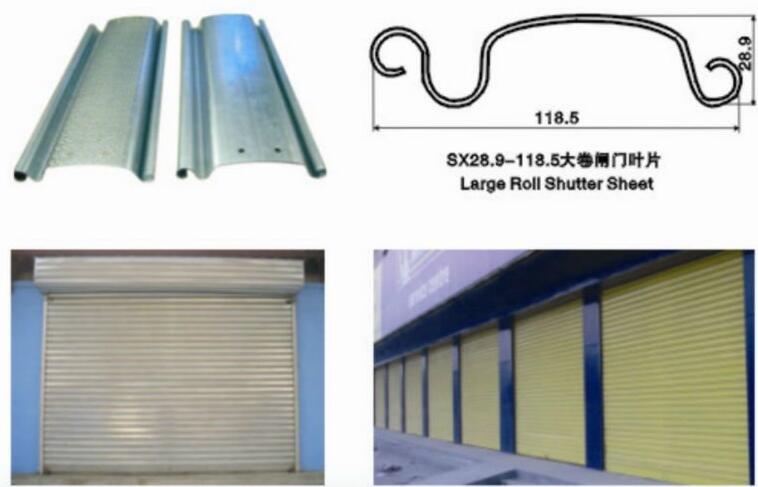

Rolling Shutter Profile Drawing
Main Components
1. Decoiler---------------------------------------------------- 1Set
2. Level device----------------------------------------------- 1Set
3. Hydraulic cutting machine------------------------------ 1Set
4. Main roll forming machine------------------------------ 1Set
5. Run out table--------------------------------------------- 2Set
6. Control panel--------------------------------------------- 1Set
Advantage for our roller shutter
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Rolling Shutter Door Forming Machine Pictures
Our Services
1). Packing method: Nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. The seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Package: One complete equipment needs a 20 feet container to hold.
3). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping out the goods.
4). Delivery Time: The seller guarantees the equipment will be ready for shipment within 60 working days after receipt of deposit from the buyer.
5). Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
6). Warranty: 12 months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.
