Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations

Name: Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations
Brand: Sussman
Price: 1 USD

China Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations wholesale

Brand Name : Sussman

Model Number : SM-SS

Certification : CE,ISO,SGS

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60days after deposit

Packaging Details : plastic film and steel wire

Material : Aluminum coil plate and colorful galvanize steel

material thickness : 0.5-1.0mm

Forming stations : 12 stations

Roller material : GCr15

Dirve systemi : 1 inch chain drive

Forming speed : 10-15m/min exclude cutting

Machine size : 3.5M x 0.5M x 0.8M

Machine weight : about 3.5 tons

Contact Now

12 Stations Chain Transmission Iron Rolling Shutter Door Slats Forming Machine With 0.5-1.0mm Thickness

Technical Parameter

Item NO	Description	Offered specification
1	Product Line speed	8-15m/min(not include cutting )
2	Suitable material thickness	0.5-1.0mm
3	Raw material	Galvanized coils yield strength≤G250MPa
4	Feeding width	135mm
5	Decoiler	3 Ton passive decoiler
6	Levelling device	7 roller levelling including 3 top rollers and 4 bottom rollers
7	Roller stations	12 stations
8	Roller material	Bearing steel, quenching treatment
9	Shaft diameter	Φ60mm ,material is 45# forge steel
10	Transmission	By chain one inch single chain
11	Material of chain	45# forged steel with frequency quenching
12	Cutting system	Hydraulic cutting blade cr12mov with quench HRC58-62°
13	Main motor power	5.5kw
14	Motor power of hydraulic station	4kw
15	Hydraulic station pressure	12Mpa
16	Tolerance	6m+-1.5mm
17	Machine Frame	H Beam Steel

Shutter Door Roll Forming line Main Components

Machine Item	Quantity (set)
3 Ton Passive De-coiler	1set
Leveling device	1set
Hydraulic cutting Device with Hydraulic Station	1set
Main roll forming machine	1set
Run out table	2 units
Control System with PLC	1set

Working Flow of Production Line

Uncoiler—feeding with guide—Rollforming—Cutting—Products collecting

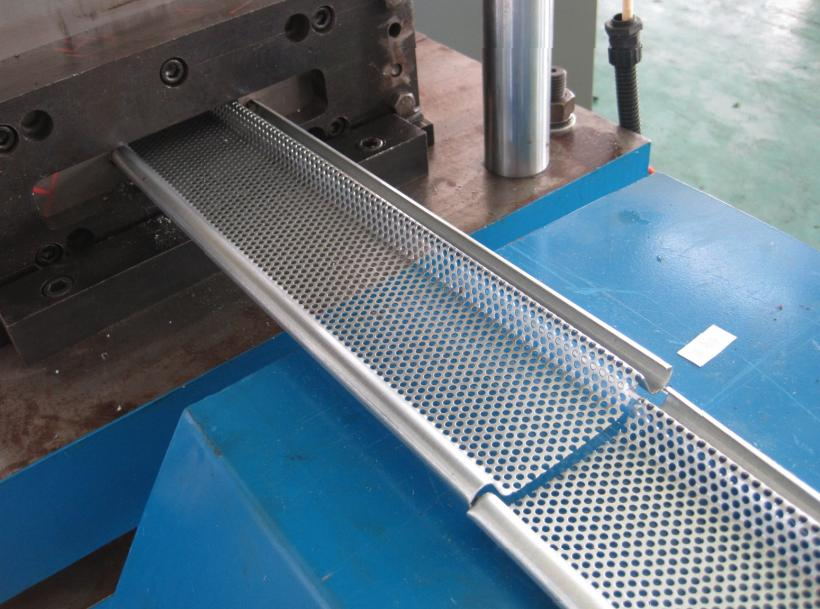

Standard Profile and Drawing

Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations

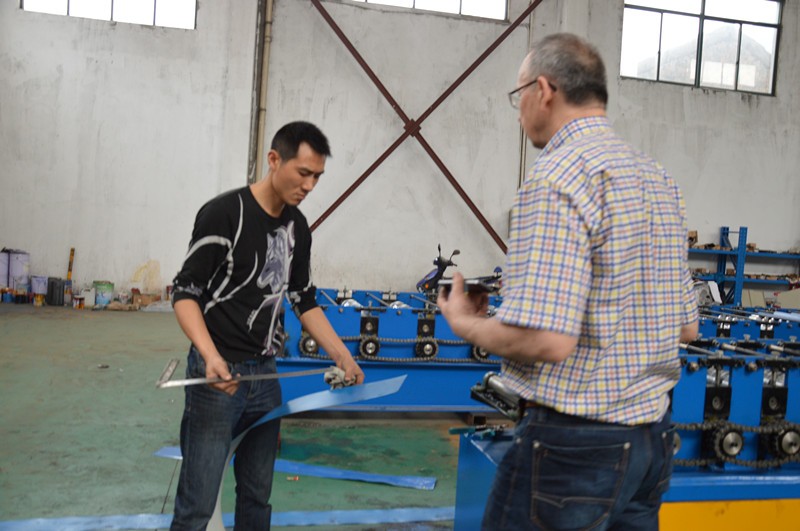

Customer Visiting

Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations

Loading pictures

Packaging Details:

1. one 20ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Delivery Detail:Within 60 days after receipt of buyer's deposit

Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations
