Brand Name : Sussman
Model Number : RF-GH
Certification : CE ISO
Place of Origin : CHINA
MOQ : 1 set
Price : negotiable
Payment Terms : L/C, T/T
Supply Ability : 10 sets per month
Delivery Time : 60
Packaging Details : Film and steel
Voltage : 380V
Condition : NEW
Tile Type : steel
Weight : 15T
Galvanized Steel Guardrail Roll Forming Machine Hydraulic Color Customized
Description
Rolling Material | W:480mm,T:3-4mm,Q235AGalvanized Coil |
Rolling Speed | 10-15M/min |
Under Frame | 450H-beam |
Sidewall Thickness | 25mm |
Roller Station | 13Groups |
Roller Materail | Gcr15Bearing Steel Treatment HRC58-62 |
Shaft Materail | High grade 45# forging steel with cylindrical grinding |
Shaft Diameter | 95mm |
Main Motor Power | 45kw |
Tranmission Method | Universal joint transmission gear box |
Leveling Motor Power | 5.5kW |
Hydraulic Motor Power | 15kW |
Pressure | 20Mpa |
Punching&Cutting Method | adopt hydraulic driving, flat sheet pre-punch, post to cut after roll forming |
Punching&Cutting Mold | Cr12quenching treatment,HRC58-60 |
Electrical | whole set adopts industrial computer PLC frequency changing controlled for length to cut tolerance≤1.5mm |
Whole unit size(mm) | 13500x2700x1600 |
Main Structure Components
Type Highway Guardrail Roll Forming Line is consist of 5T passive decoiler,transmission device,leveling device,3 units pre-punching device,roller forming system,post to cut after forming,Computer control cabinet,and finished support table.
Processing Sketch
Passive Decoiler--->Feeding Straighting--->Seven Leveling Rollers--->Flat Pre-punching--->Roll Forming--->Post to Cut--Exit Rack

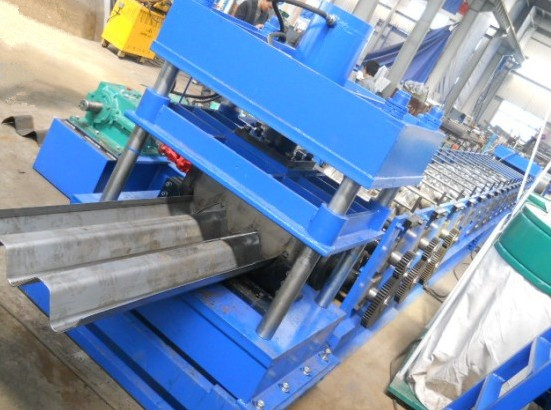

Machine pictures
![]() |
High Speed Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized Images |
