5mm thickness 8-12 m/min double layer roll forming machine 12 Mpa
Main Features:
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets, or 1 wall & roof sheet and. Customer can choose the type.
- Variable frequency speed control
- Multi-purpose for overlap connection
- Auto power off
Technical Data
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.25-0.8mm, coil width 1220 and 1000mm |
| 2 | Forming Speed | m/min | 8-12 |
| 3 | Roller stands | stand | 18 stands bottom layer; 18 stands top layer |
| 4 | Roller Material | mm | 45# steel, coated with chrome quenching |
| | Shaft material and diameter | mm | Ф76 45# steel, coated with chrome |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | | 220V, 60HZ,3 phase |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | | Cr12mov HRC60-62 |
| 11 | Control system | | PLC with touch screen |
| 12 | Machine net weight | T | 8 |
Technological Process
Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting
Installation of the machine
The individual components of the machine are installed according to the layout and prepared for the commissioning.
The installation comprises of:
- Installation by Sussman service technicians.
- The following services are included:
- Installation of the machine components.
- Adjustment of the machine components.
- Connection of all motors to the control cabinet.
- Installation of the required safety devices.
Delivery extent does not comprise of:
- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)
- Raw material process material and fuels
- Raw material for test blocks
- Transport and lifting devices
- Auxiliary staff.
The operators of the plant should be present during the installation in order to become familiar with the new machines.
Installation of the machine
The individual components of the machine are installed according to the layout and prepared for the commissioning.
The installation comprises of:
- Installation by Sussman service technicians.
- The following services are included:
- Installation of the machine components.
- Adjustment of the machine components.
- Connection of all motors to the control cabinet.
- Installation of the required safety devices.
Delivery extent does not comprise of:
- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)
- Raw material process material and fuels
- Raw material for test blocks
- Transport and lifting devices
- Auxiliary staff.
Technique process

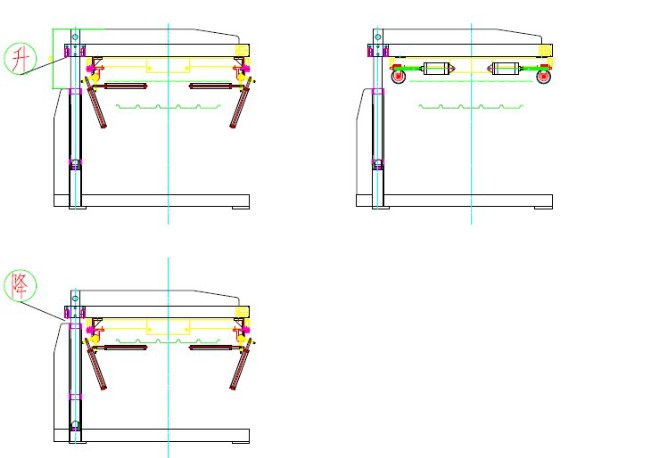

air cylinder ejector——Carry panel start——Panel falling—Out put
