7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal

Name: 75KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal
Brand: Sussman
Price: 15 USD

China 7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal wholesale

Brand Name : Sussman

Model Number : SM-SD-045

Certification : CE, SGS, ISO

Place of Origin : China

MOQ : 1 set

Price : USD 15,000 per set

Supply Ability : 5 sets per month

Delivery Time : 30-90 days

Packaging Details : standard film

Type : Metal Shutter Door Roll Forming Machine

Material : 0.7-1.2mm, Galvanized coils

Main Power : GCr15 steel

Forming steps : about 12 steps

Contact Now

7.5KW Hydraulic Punching Galvanized Metal Sheet Perforation Garage Rolling Shutter Door Machine

Rolling shutter doors are produced by rolling shutter machines and are used for parking lot doors and home doors, store front displays and garages, etc. They are very sturdy and a sage to the property. Therefore, roller shutters provide adequate protection and security against theft and fire. These doors are stronger if sufficient steel thickness is used.

The technique data
1. Materials to form shutter door: 7-1.2mm, Galvanized coils
2. Forming steps: about 12 steps
3. Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150
4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13
6. Cutting : hydraulic cutting; quenching HRC58-62
7. Electronic control: PLC control (Delta)
8. Dimension of machine: 6500mmX800mmX800mm, total line about 20 meters per min.
Drive system: chain drive, 5.5KW main motor power, working speed:10-12m/minwithout the punching, if with punching, about 1-2 meters per min.
Lubrication system: with pipes

Working flow:
Decoiler—→Level device—→Main roll forming machine—→Hydraulic punching—hydraulic cutting→ Run out table
Machine List

Name	Quantity (set)
De-coiler	1set
Hydraulic cutting device	1set
Main roll forming machine with lubrication	1set
Hydraulic cutting device	1set
Hydraulic punching for Punching Waist Hole& Riveted(remachado) System	5 sets
Run out table	2 sets
Control box	1set

7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal

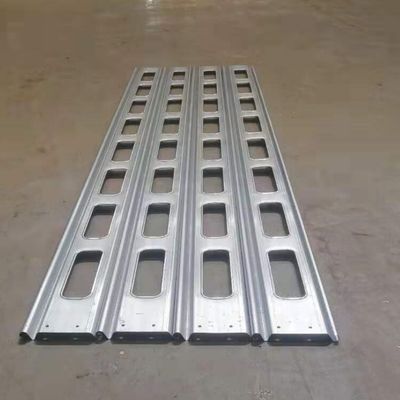

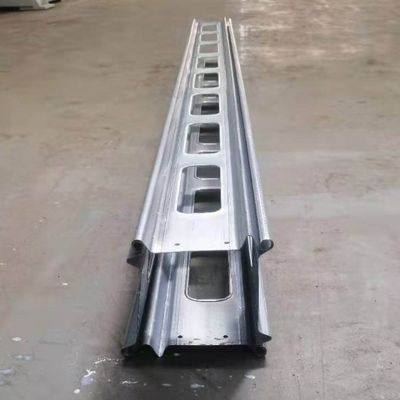

Profile drawing

7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal

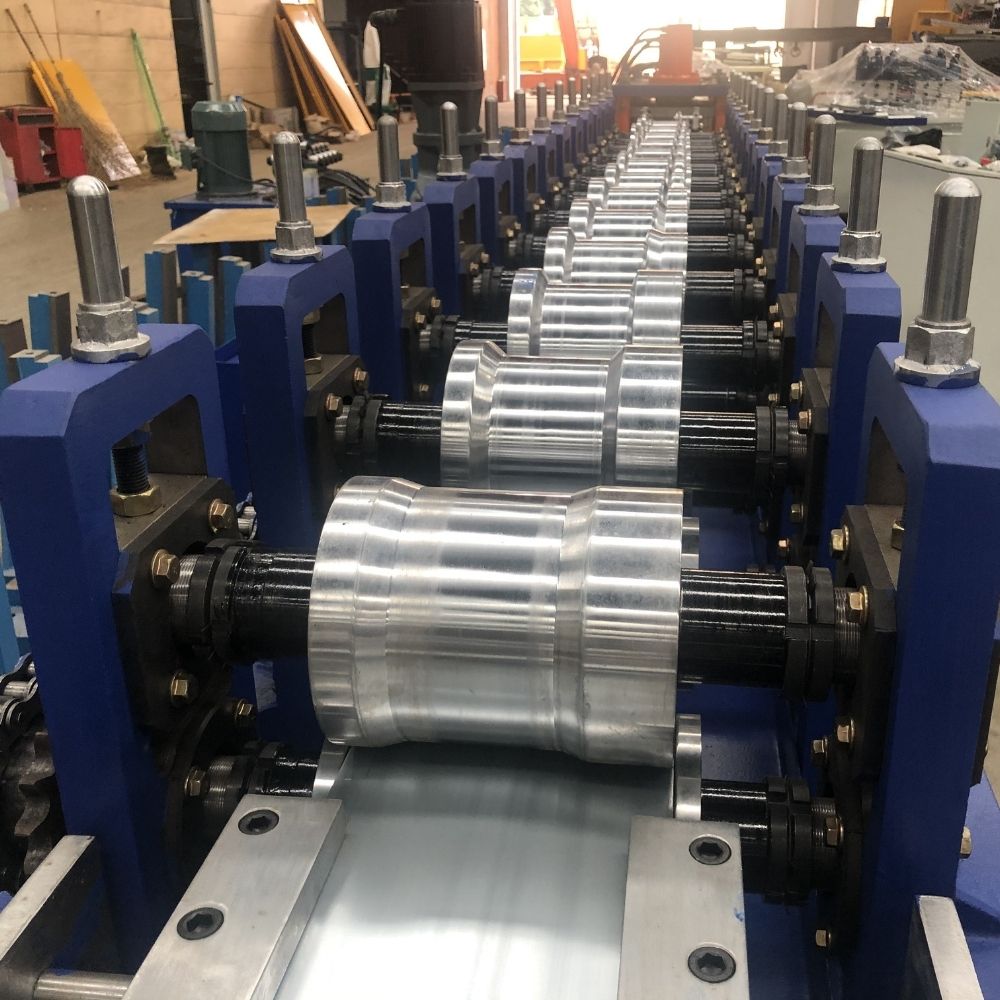

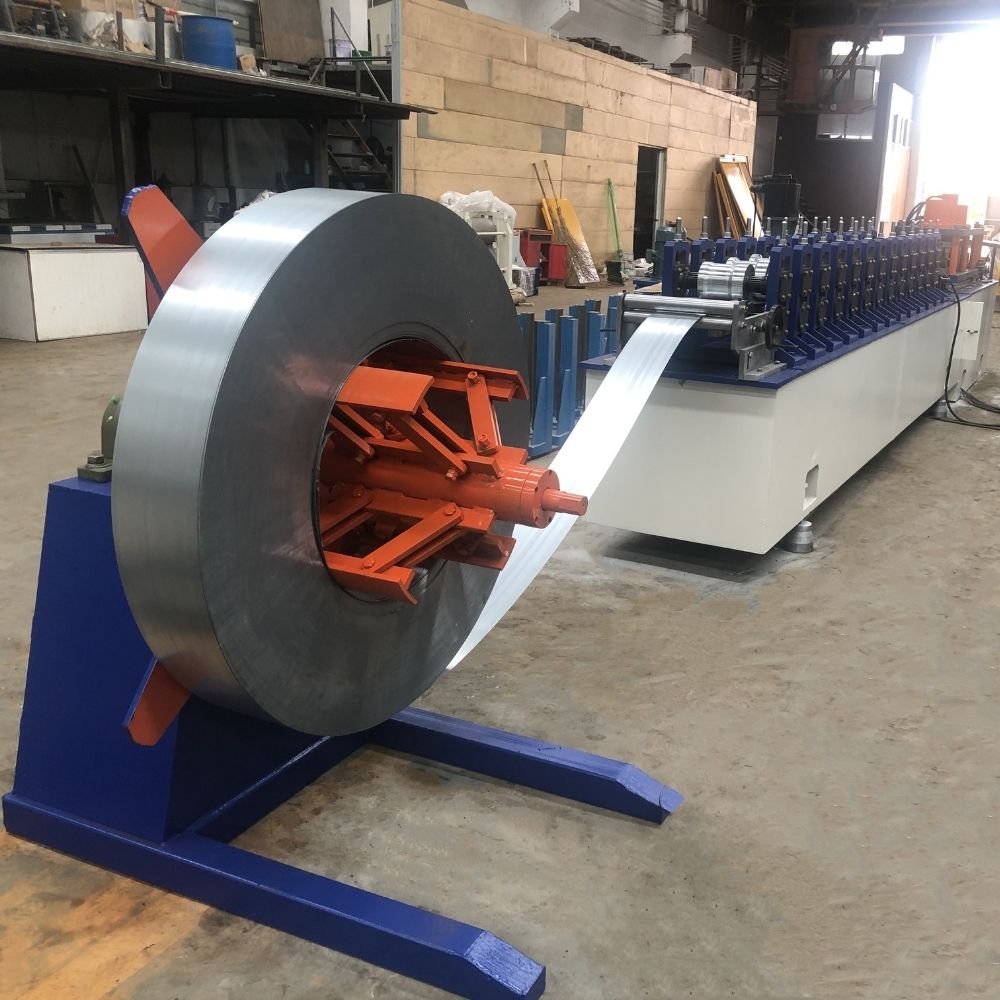

Machine Shows

7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal

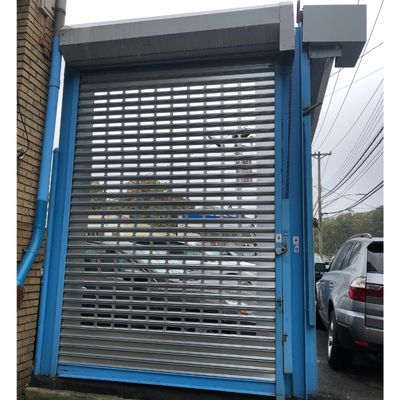

Application:

7.5KW Hydraulic Shutter Door Roll Forming Machine Punching Galvanized Metal
