24 Inches Coverage Double Rib 5V Roofing Sheet Roll Forming Machine Roof Tile Making Machine
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-5, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.
The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
The Berridge Double-Rib Panel is an exposed fastener panel for use over solid sheathing. The panel covers 24″ with a double-rib seam overlap. This wide, economical panel provides a traditional appearance and is ideal for residential or utility applications over solid sheathing.
Technical parameter:
| Item NO | Description | Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 12-15m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.3mm-0.8m |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.6 | Dimension | About 8000×1600×1200(mm) |
| 1.9 | Roller stations | About 12-13 stations |
| 1.10 | Roller material | 45#forge steel, coated with chrome |
| 1.11 | Shaft diameter | Φ76mm |
| 1.12 | Transmission | By chain 1.2 inch |
| 1.13 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 10m+-1.5mm |
| 1.16 | Hydraulic station | 4kw |
Machine List:
| 5 tons passive de-coiler | 1 set |
| Main roll forming machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Safety cover | 1 set |
| Spare parts | 1 set |
working flow

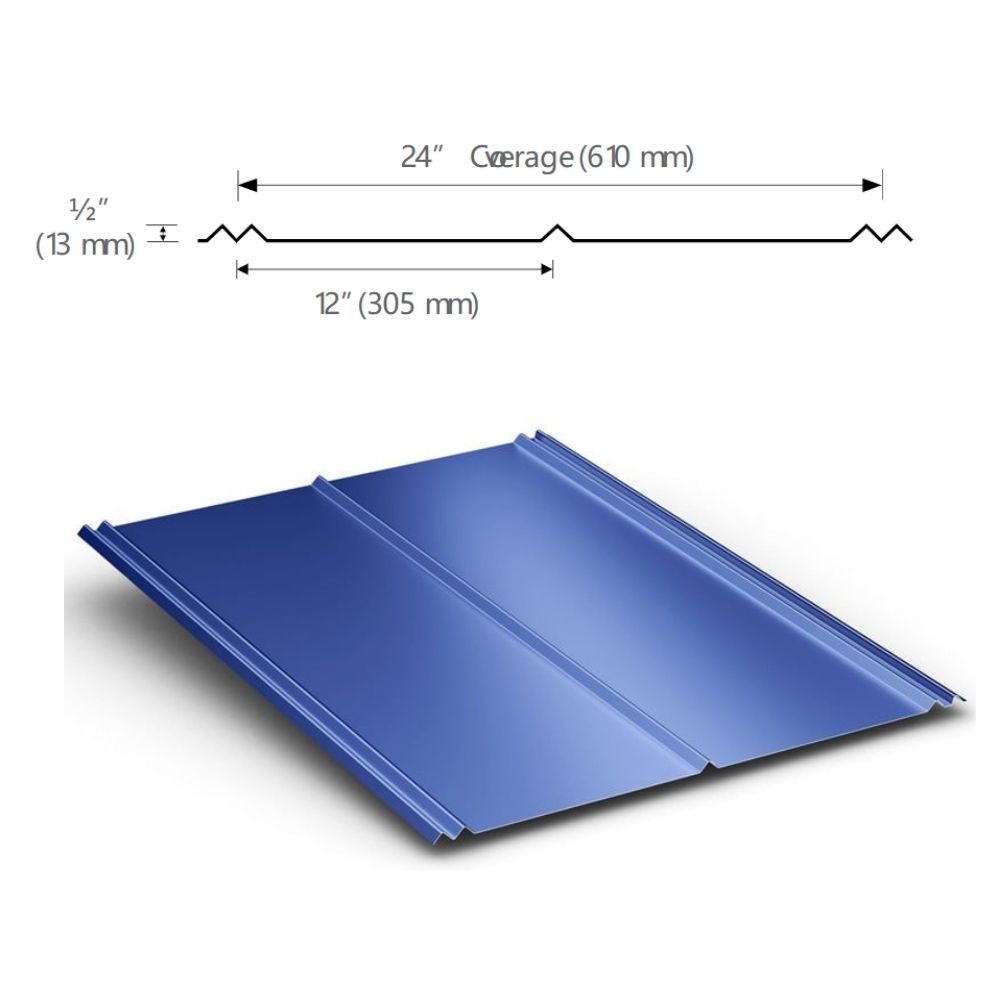

Profile Drawing

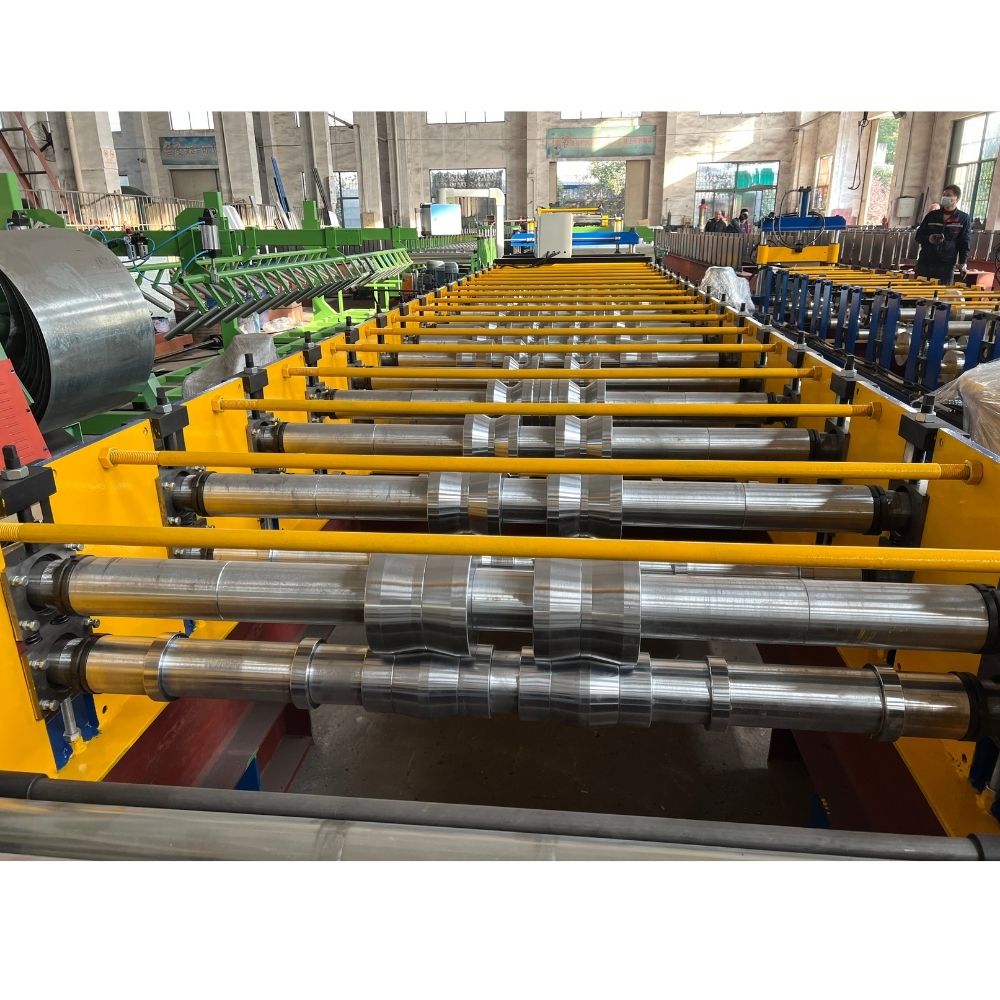

Machine Shows

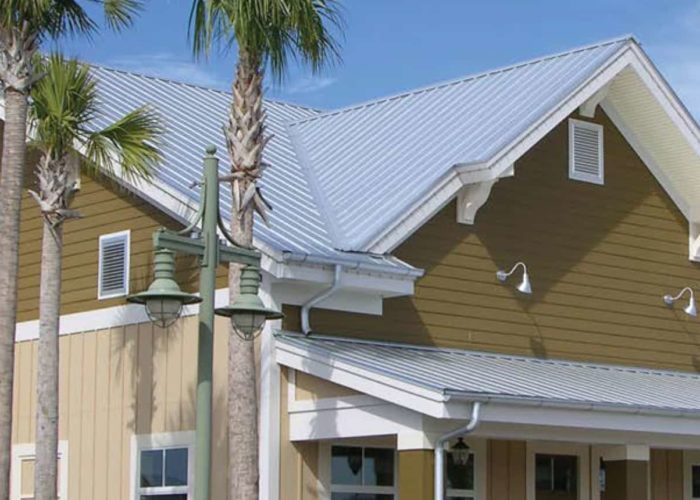

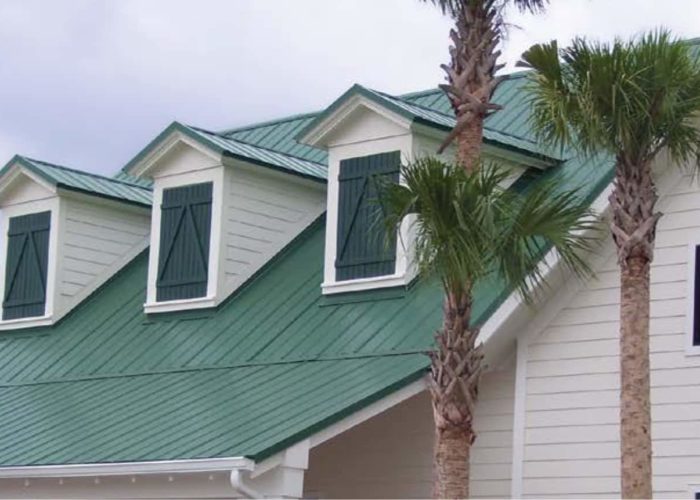

Application
