Composite Deck Floor Roll Forming Machine 0.8mm - 1.5mm Galvanized Steel Structure

Name: Composite Deck Floor Roll Forming Machine 08mm 15mm Galvanized Steel Structure
Brand: SUSSMAN
Price: 1 USD

China Composite Deck Floor Roll Forming Machine 0.8mm - 1.5mm Galvanized Steel Structure wholesale

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : SGS,CE ,ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10 sets per month

Delivery Time : 60-90 working days

Packaging Details : Standard Packing with film coated and steel wire fixed

Name : Deck Floor Roll Forming Machine

material thickness : 0.8mm-1.5mm Galvanized Steel

Stations : About 24 Stations with embossing roller

Working speed : 0-25 meters/minutes

Contact Now

0.8mm-1.5mm Thickness Galvanized Steel Building Structure Composite Deck Floor Roll Forming Machine

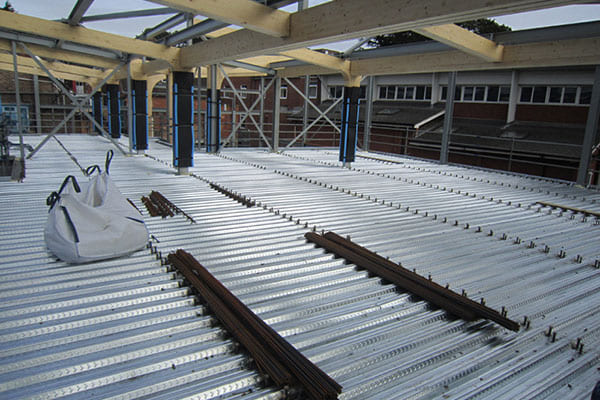

Form deck is corrugated metal sheeting that’s used as a form for structural concrete. Steel form decking will support the concrete slab during building erection. Form decking is a popular concrete form because it’s economical and it’s a stay in place form. Unlike a wood form, a steel form deck doesn’t have to be removed when the concrete is cured.

Floor Deck Making Machine Technical Parameter

Item NO	Description	UnitType	RF-DF
1	Steel Thickness	mm	0.8-1.2mm
2	Forming Speed	m/min	10-12m/min
3	Roller stands	stand	24
4	Roller Material		Gcr15 chromed HRC55-60
5	Shaft diameter		Ф90mm
6	Main Motor Power	kw	11*2kw
7	Hydraulic cutting Power	kw	5.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	DRIVE system	Chain	1.6 inches

Machine List

No	Name	quantity
1	5 ton passive de-coiler	1 set
2	Main roll forming machine	1 set
3	PLC system	1 unit
4	Hydraulic station	1 unit
5	Out tables	2 units

Working Flow of Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
