0.7-1.2mm Galvanized Steel Metal Shutter Bottom Roll Forming Machine with Stop Saw Cutting
Machine Technical Data
| Suitable material | Color steel sheet , galvanized steel |
| Roller station | 23 stations |
| Main motor power | 11KW |
| Cutting method | Stop saw cutting |
| Thickness of material | 0.7-1.2mm |
| Diameter of principal axis | Φ60 |
| Material expand width | as profile |
| Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| Material of roller | High grade Gcr15# forged steel plated with hard chrome plating |
| Controlling system | PLC |
| Processing speed | 8-12m/min |
| Processing precision within | +-1.00mm (depend on design) |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Kind of drive | 1 inch chain |
| Installation Dimension (L*W*H) | 9.0m*0.8m*1.2m |
| Roller material | high grade 45#steel; Cr12 quenching |
| Weight | 5ton |
Working flow
Decoiler----------Feeding with guide-------Roll forming---------Saw cutting-----Out table
The roll forming process involves feeding a continuous strip of metal through a series of rollers that gradually shape the metal into the desired profile. In the case of a shutter bottom roll forming machine, the rollers are designed to form the bottom section of the shutter door, which typically has a corrugated or ribbed profile for strength and rigidity.
These machines can be highly automated, with computer controls to adjust settings such as roller positions and feed rates. They are capable of producing shutter bottom sections efficiently and consistently, making them suitable for high-volume production environments.
The resulting shutter bottom sections can then be assembled with other components to create complete shutter doors, which are used in various applications such as storefronts, warehouses, and garages.
Production Line Machine List
| Serial No. | Commodity & Description | Quantity |
| 1 | 3T passive uncoiler | 1 set |
| 2 | Feeding with guiding | 1 set |
| 3 | Main roll forming machine | 1 set |
| 4 | Output table | 1 set |
| 5 | Main drive chain | 1 set |
| 6 | Saw cutting | 1 set |
| 7 | Controll system (including cabinet) | 1 set |
| 8 | Water cooling system | 1 set |

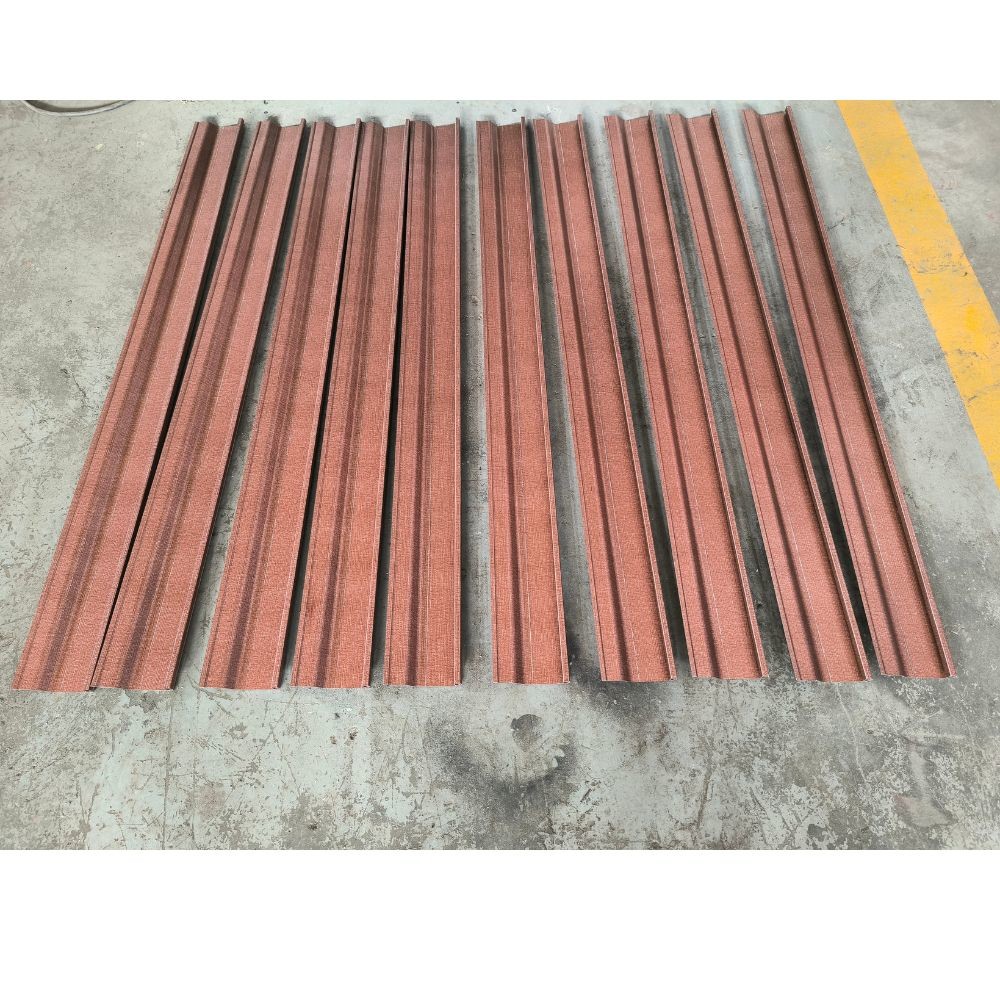

Profile
Loading pictures
The machine photo
All machines are customized. If you have any interest in this machine, please send us the profile drawing or sample picture.
