0.7-1.2mm Galvanized 3inches 4 inches Industrial Rolling Shutters Roll Forming Machine With Ribs
Shutter Door Technical Parameter
|
Description |
Offered specification |
| Product Line speed | 8-15m/min |
| Suitable material thickness | 0.7-1.2mm |
| Raw material | Galvanized steel, Yield Strength≤G250MPa |
| Material width | As profile |
| Decoiler | 3 Tons passive decoiler |
| Roller stations | 12 stations |
| Roller material | Gcr15 high grade steel, quenching treatment |
| Shaft diameter | Φ60mm ,material is 45# forge steel |
| Transmission | By chain one inch 20A single chain |
| Material of chain | 45# forged steel with frequency quenching, 12A |

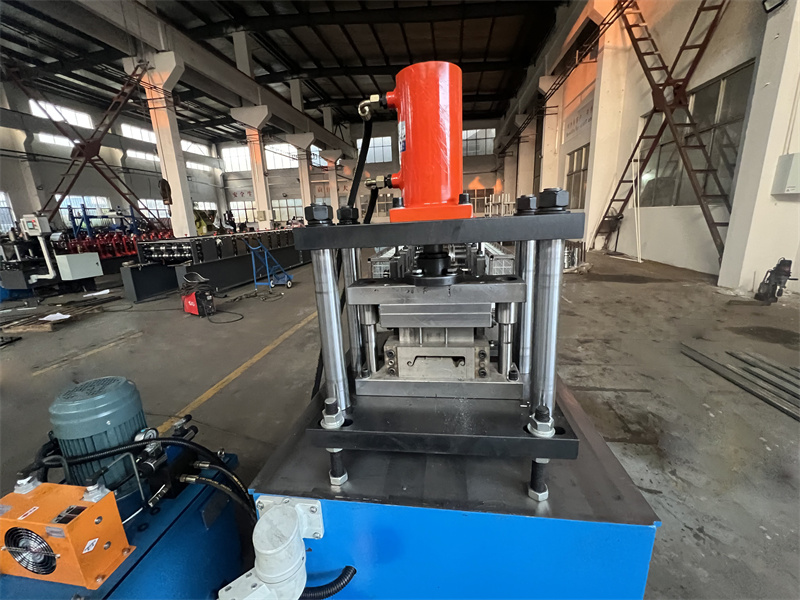

| Cutting system | Hydraulic cutting blade cr12mov with quench HRC58-62° |
| Main motor power | 5.5kw |
| Motor power of hydraulic station | 4kw |
| Hydraulic station pressure | 12Mpa |
| Tolerance | 6m+-1.5mm |
Shutter Door Main Components
| S.N | Equipment name
| Quantity |
| 1. | 3 T passive un-coiler
| 1 set |
| 2. | Feeding device
| 1 set |
| 3. | Main roll forming machine with ribs | 1 set |
| 4. | Hydraulic station
| 1 set |
| 5. | Control system (including control box)
| 1 set |
| 6. | Out tables
| 2 sets |
| 7. | Spare Parts
| 2 packages |

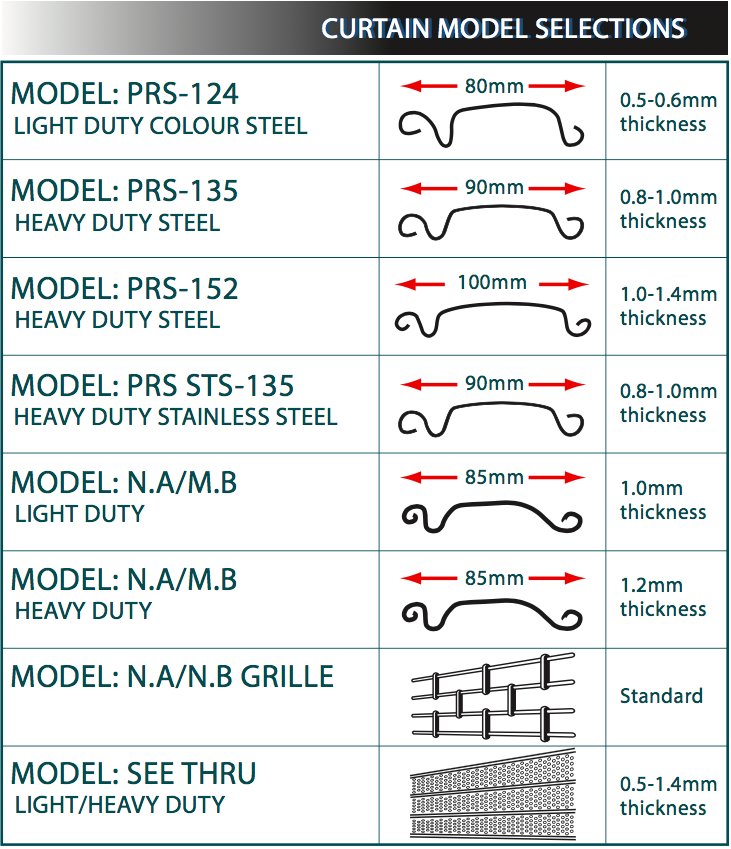

Profiles of Shutter Door
A metal rolling shutter door is a type of door that consists of interlocking metal slats or panels that roll up into a compact coil above the doorway when opened. These doors are widely used for security, durability, and ease of operation and are popular in commercial, industrial, and residential settings.
Key Features of Metal Rolling Shutter Doors:
- Durability and Security: Made from strong materials like galvanized steel, aluminum, or stainless steel, which makes them resilient against forced entry, weather, and fire in some models.
- Compact Design: The rolling mechanism allows the door to roll up into a coil, saving space and keeping the entrance clear when the door is open.
- Manual or Automatic Operation: Can be operated manually or with an electric motor for larger doors. Automated options often include remote controls and safety sensors.
- Weather Protection: Offers protection from the elements, and many models have weatherstripping to prevent drafts, water ingress, and dust from entering.
- Customization: Available in various sizes, colors, finishes, and styles, some with added insulation for energy efficiency.
Advantage for Shutter Door
Metal rolling shutter doors are a practical solution for secure and space-efficient doors in commercial, industrial, and residential applications.
They are chosen for their durability, security, and adaptability, offering protection and accessibility with a streamlined, compact design.
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
