Indonesia1.2-2.0mm Thickness U Shape Ladder Cable Tray Roll Forming Machine

Name: Indonesia1220mm Thickness U Shape Ladder Cable Tray Roll Forming Machine
Brand: Sussman
Price: 1 USD

China Indonesia1.2-2.0mm Thickness U Shape Ladder Cable Tray Roll Forming Machine wholesale

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 working days after deposit

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Type : U Shape Ladder Cable Tray Roll Forming Machine

Main motor power : 5.5KW

Hydraulic Cutting power : 4Kw

Material Thickness : 1.2-2.0mm

Contact Now

Indonesia1.2-2.0mm Thickness U Shape Ladder Cable Tray Roll Forming Machine

In Indonesia's rapidly growing industrial and construction sectors, ladder cable tray systems have become the backbone of
efficient cable management. These robust support systems are specifically designed to handle heavy electrical loads while withstanding tropical climate conditions. Among the various designs available, W-shape and U-shape ladder cable trays dominate the market due to their structural advantages and installation flexibility.

Technical Data:

	Items	Specifications
	Width of the profile	100mm
	Height of the profile	18mm
	Thickness	1.2mm ~2.0mm (Galvanized Iron Sheet)
	Un Coiler	3 ton passive
Forming system	Rolling Speed	0-10 meters /min with punching
	Roller Stations	About 16 stations
	Roller Material	GCr15, Quench HRC58-62 Plated Chrome
	Shaft	45# Advanced Steel (Diameter: 75mm), thermal refining
	Main Motor Power	7.5kw
	Hydraulic cutting Power	5.5 kw
Cutting system	Material Of Cutting	SKD11
	Hardness	HRC58-62
	Tolerance	Length +-1.5mm, width and height +-0.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC control
	Weight	About 5 tons
	Way Of Drive	1 inches chain
	Size of machine	Length 6500mm* Width 800mm* Height 1000m

Machine List:

3 ton passive de-coiler	1 set
Feeding Guiding	1 set
Roll Forming Part	1 set
Hydraulic Punching&Hydraulic Cutting	1 set
Punching Die	1 set
6 Meters Pneumatic Auto Stacker	1 set
Safety Cover	1 set
Tools&Spare part	1 package

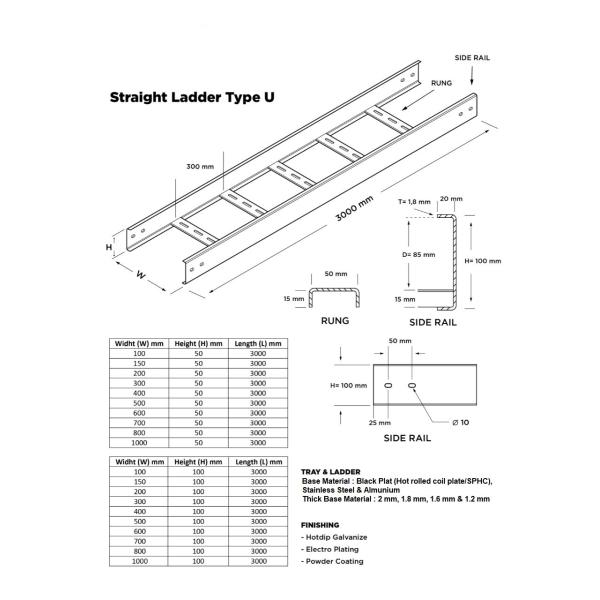

Profile Drawing:

Indonesia1.2-2.0mm Thickness U Shape Ladder Cable Tray Roll Forming Machine

Working Flow:

Decoiler--Roll Forming--Hydraulic Punching & Hydraulic Cutting----Auto stacker

Application:

Indonesia1.2-2.0mm Thickness U Shape Ladder Cable Tray Roll Forming Machine
